Precision Farming Displays

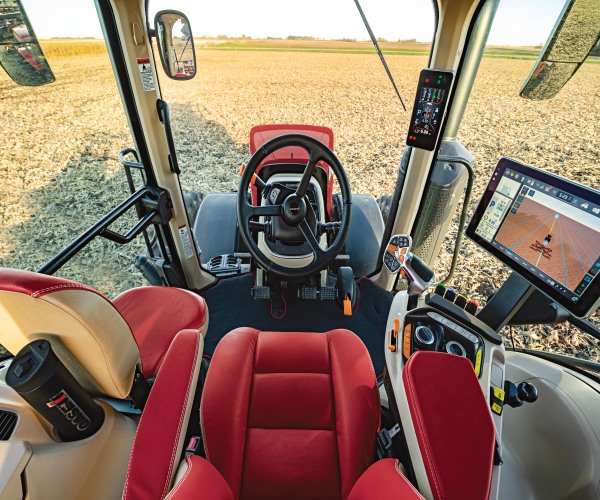

AFS Pro 1200

AFS PRO1200

The AFS Pro 1200 LCD display is designed for intuitive navigation, the newest display features anti-glare for visibility on even the brightest days. Remote display viewing connects operators with farm managers seamlessly, and Bluetooth® capabilities pair the display with a mobile phone.

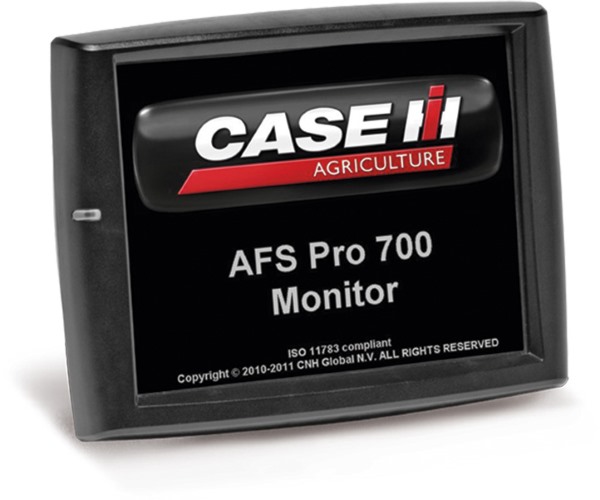

AFS Pro 700

AFS Pro 700

The AFS Pro 700 features a 10.4-inch, color, touch-screen display - designed for easy reading in daylight and equipped with adjustments for nighttime visibility. It also comes with three video inputs to monitor implements and grain tank level. In addition to six customizable run screens, the AFS Pro 700 features an ISOBUS virtual terminal. This provides the ability to communicate with implement ISOBUS controllers that are compatible

AFS Pro 700 provides a single-point interface for precision farming and machine control. The AFS Pro 700 display can be used with Case IH tractors, combines, sprayers, balers, planters, seeders, combination applicators and tillage to control and monitor key functions and track important information. AFS products such as AccuGuide™ autoguidance, AFS AccuTurn™, AccuGuide All-Makes, ElectriSteer, RowGuide™ guidance, AFS AccuControl, Accu-Stat and ISO Task Controller utilize the AFS Pro 700 display.

It is also backward compatible with any equipment previously fitted with AFS Pro 200 or AFS Pro 600 displays, as well as a wide variety of non-Case IH ISO 11783 VT implements.

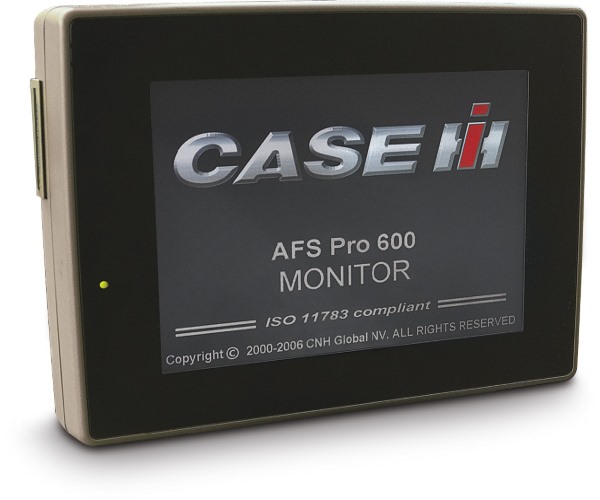

AFS Pro 600

AFS Pro 600

The AFS Pro 600 is a legacy display offered in Case IH equipment from 2007 - 2011.

The display is still used in many operations and can be sent in for repair if damaged. There has been display trade up programs in the past to update machine functionality that the Pro 600 does not support, such as AFS AccuTurn. The main reason to update this display is when the display lags in performance in high processing situations such as planting or spraying.

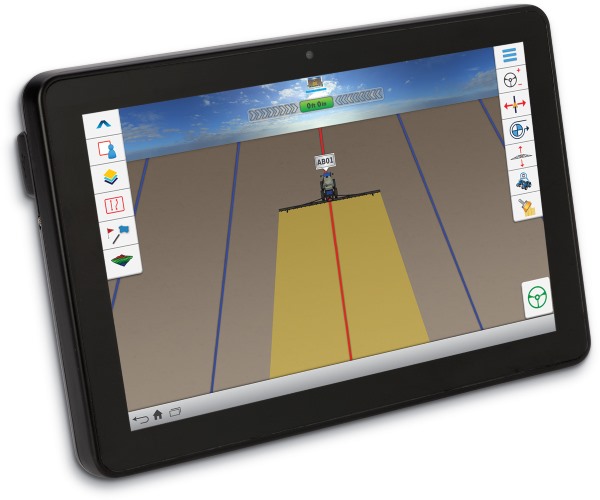

XCN-2050

The XCN-2050 display is an intuitive, high-definition touch-screen display built on the Android™ operating system. The GPS/GLONASS receiver is capable of a wide range of accuracy levels. It can be used in conjunction with Case IH guidance ready equipment as well as many other makes and models for automated steering. The XCN-2050 display is also compatible with EZ-Pilot®, Field-IQ Crop Input Control System and more.

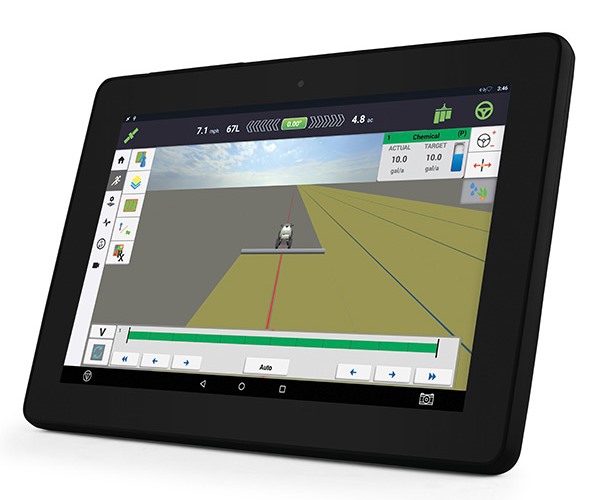

XCN-1050

XCN-1050

The XCN-1050 display is sleek and easy to use. Simplified installation offers decreased cab clutter without compromising functionality. Features include ISOBUS compatibility, Field IQ™ Crop Input Control System Basic, and built-in Bluetooth® and Wi-Fi. The XCN-1050 NAV-900 guidance controller uses signal frequencies from GPS, GLONASS, Galileo, and Beidou satellite systems to offer AFS RTK+, CenterPoint®RTX correction service, RangePoint® RTX, and xFill® correction signals. This system is compatible for use with AutoPilot™ and APMD (Autopilot Motor Drive) systems.

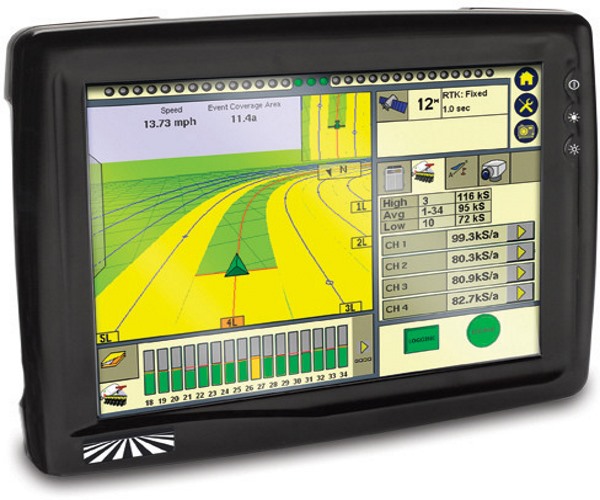

FM-1000

FM-1000

No longer available new. The updated version of this display is the XCN-2050

With the FM-1000™ integrated display you can perform:

  • Field definition and mapping
  • Feature mapping
  • Guidance to predefined field patterns
  • Logging of coverage data
  • Variable rate control
  • Boom/Row switching
  • Logging of topographic mapping data
  • Output of information for analysis in office-based Geographic Information System (GIS) software
  • Seed, Liquid, Granular, and Anhydrous Ammonia control
  • Seed monitoring

The following are compatible with the FM-1000 integrated display:

  • Trimble Autopilot™ automated steering system
  • Trimble EZ-Steer® assisted steering system
  • Trimble EZ-Pilot® steering system
  • Trimble TrueTracker™ implement steering system
  • Trimble TrueGuide™ implement guidance system
  • Trimble FieldLevel™ II
  • Trimble WM-Drain® farm drainage system
  • Trimble Field-IQ™ crop input control system
  • Trimble RangePoint™ RTX™
  • Trimble CenterPoint™ RTX
  • Trimble GreenSeeker®
  • Trimble Tru Count Air Clutch®
  • Trimble AutoSense™
  • Trimble T2™ terrain compensation technology
  • Trimble T3™ roll compensation
  • OmniSTAR® wide-area differential GPS service

Last Firmware version v10.13 released 2017

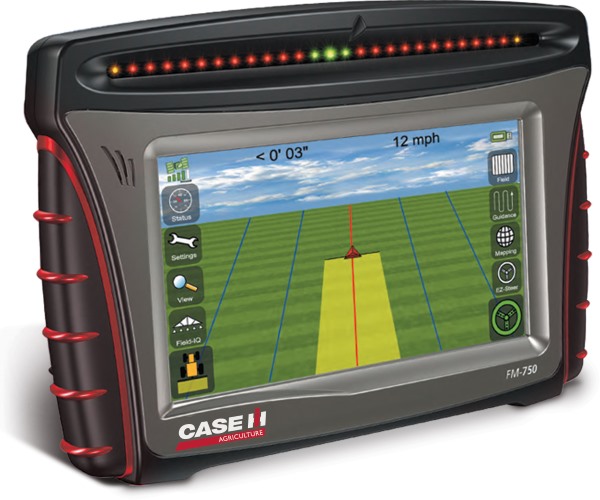

FM-750

FM-750

The FM-750 display is a multifunctional precision agricultural display with an integrated GPS/GLONASS receiver capable of a wide range of accuracy levels. It can be used in conjunction with a Case IH guidance ready machine as well as many other makes and models for automated steering. Products such as AutoPilot, EZ-Pilot, EZ-Steer™ assisted steering system, Field IQ and others utilize the FM-750 display.

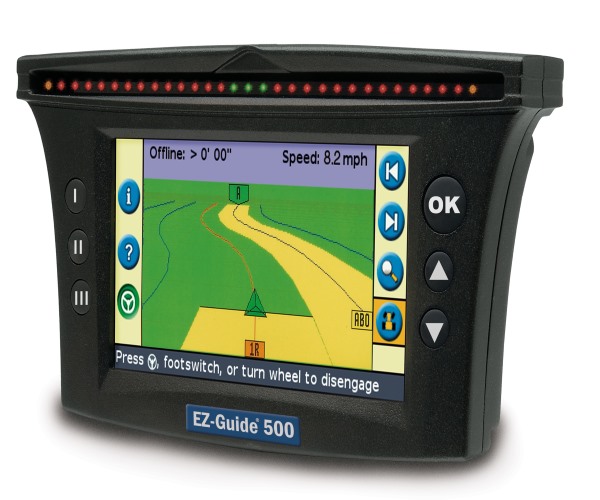

EZ-Guide 500

AFS EZ-Guide 500

No longer available new. The updated version of this display is the FM-750.

The system includes the following features:

  • A color LCD screen
  • A lightbar with 31 LEDs
  • An internal GPS receiver
  • Multiple field patterns for different field layouts

The EZ−Guide 500 lightbar guidance system can be connected to:

  • The EZ−Steer® assisted steering system
  • The AgGPS® Autopilot(TM) automated steering system
  • A serial variable rate controller
  • The EZ−Boom(TM) 2010 automated application control system (when the lightbar has firmware version 2.00 or higher)

Last Firmware version 5.10 released 2010

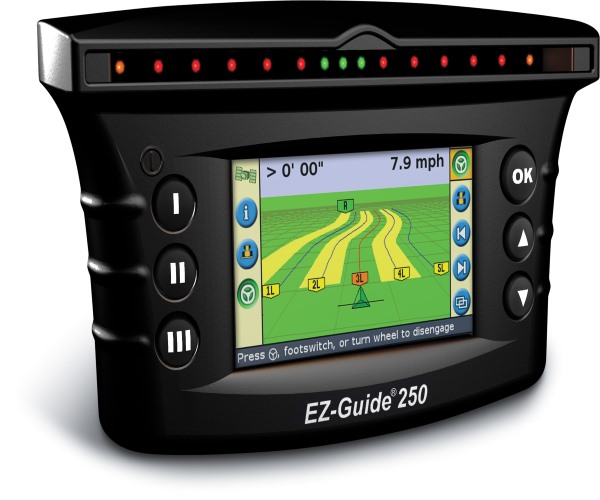

EZ-Guide 250

EZ-Guide 250

The EZ-Guide 250 is an entry-level guidance option with an integrated GPS receiver capable of six- to eight-inch pass-to-pass accuracy with the optional WAAS AG15 antenna upgrade.

The EZ-Guide 250 can be used for manual guidance or with EZ-Steer assisted steering system.

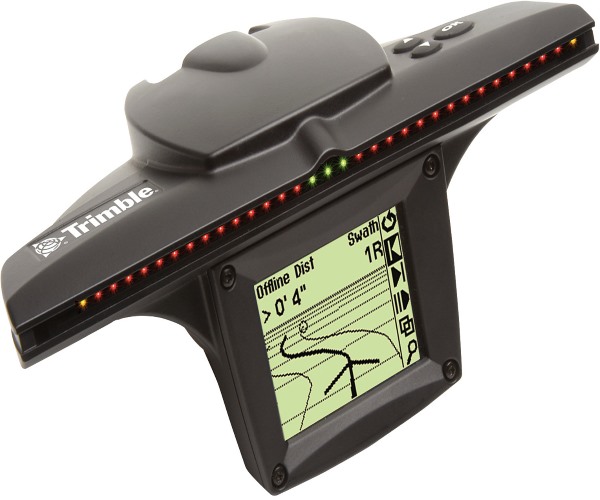

AFS EZ-Guide Plus Light Bar

EZ-Guide Plus Light Bar

No longer available new. The updated version of this product is the EZ-Guide 250 or 500.

Compatible with EZ-Steer, EZ-Boom, and Autopilot.

Last Firmware version v4.11 released in 2008
